WPC PE Outdoor Decking Machine Production Line

In recent years, with the increasing emphasis on environmental protection and the pursuit of high – quality outdoor living spaces, Wood Plastic Composite (WPC) materials have gained significant popularity. Among them, the WPC PE Outdoor Decking Production Machine Line plays a crucial role in the production of high – performance outdoor decking materials. This article will provide a detailed introduction to this production machine line. Covering its working principle, components, advantages, and application scenarios.

Working Principle of WPC PE Outdoor Decking Machine Production Line:

The WPC PE Outdoor Decking Production Machine Line mainly uses a extrusion – molding process. The core principle is to mix polyethylene (PE) resin, wood fibers, and various additives evenly. And then use the extrusion force of the extruder to push the mixed material through the die to form the desired decking profile.​

During the production process, the wood fibers provide the texture and appearance similar to natural wood, while the PE resin acts as a binder, giving the product excellent waterproof, anti – rot, and anti – insect properties. Additives such as antioxidants, ultraviolet (UV) stabilizers, and colorants are added to improve the overall performance and aesthetic appearance of the product.

Technical Parameters:

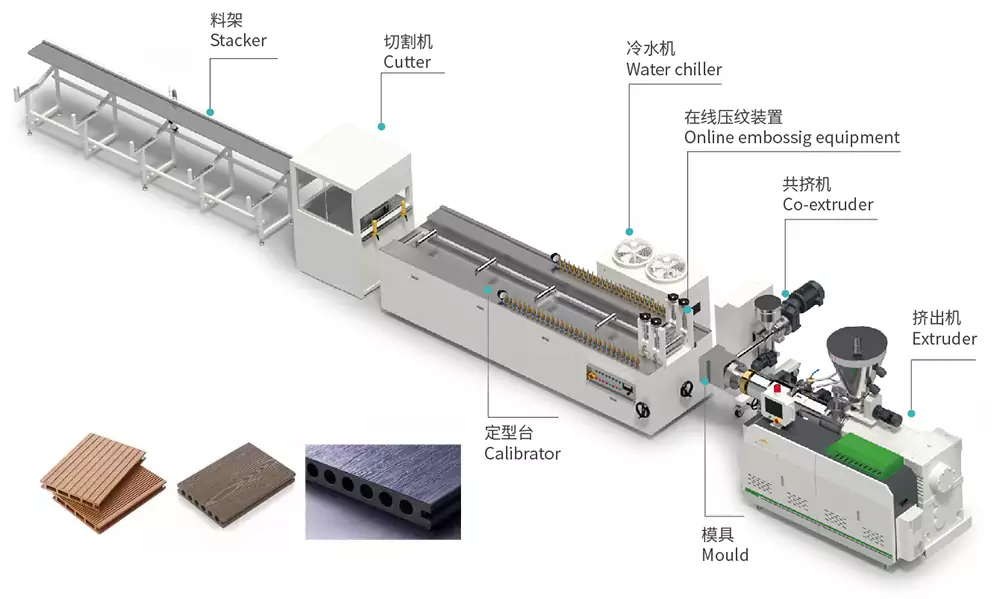

Components of WPC PE Outdoor Flooring Production Machine Line:

• Mixing System: The mixing system plays a vital role in evenly blending various raw materials. High – speed mixers are commonly used in this system.
• Extrusion System: The extrusion system is the core component of the production machine line. It mainly consists of an extruder, which is usually a twin screw extruder. The twin screw extruder has better conveying, mixing, and plasticizing capabilities compared to a single screw extruder.
• Molding System: The molding system includes the die and the cooling and shaping devices. The die is designed according to the specific profile requirements of the outdoor decking. Once the plasticized materials are extruded from the extruder, they pass through the die to obtain the desired cross – sectional shape. After passing through the die, the extruded decking is immediately cooled and shaped. This is usually achieved through a combination of water – cooling and air – cooling methods.
• Cutting System: The cutting system is used to cut the continuously extruded decking into the required lengths. It usually adopts a flying – saw cutting method, which can accurately cut the moving decking at high speed.
• Stacking System: After cutting, the cut decking is sent to the stacking system, where it is neatly stacked for subsequent packaging and storage.

Advantages of WPC PE Outdoor Floor Production Line:

• High Production Efficiency – Automated processes for high productivity.
• Excellent Product Quality – Thanks to the precise control of each production process, the decking products produced by this machine line have excellent quality.
• Green and Environmentally Friendly – Use recycled wood and plastic to reduce resource waste.
• Flexible customization – Color, texture and cross-sectional shape can be adjusted by changing the mold.
• Cost Optimization – Long lifespan and minimal upkeep reduce long-term costs.

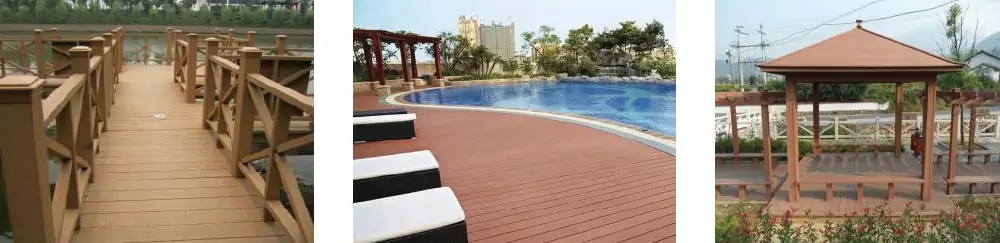

Application Scenarios of WPC PE Outdoor Decking (Flooring):

The decking products produced by the WPC PE Outdoor Decking Production Machine Line have a wide range of application scenarios.​

• Residential Outdoor Spaces​: In residential areas, WPC outdoor decking is often used to build backyard decks, balconies, and poolside platforms. Its natural – looking wood texture can create a warm and comfortable outdoor living environment. While its waterproof and anti – slip properties ensure the safety of family members using these outdoor spaces.​
• Commercial Outdoor Facilities​: For commercial outdoor facilities such as restaurants, cafes, and hotels, WPC outdoor decking is also a popular choice. It can be used to build outdoor dining areas, walkways, and terraces.
• Public Outdoor Landscapes: In public outdoor landscapes such as parks, gardens, and waterfront areas, WPC outdoor decking is widely used to build boardwalks, viewing platforms, and rest areas.

WPC PE outdoor decking extrusion line is an ideal choice for producing high-quality, durable and environmentally friendly flooring. With its automated control, flexible customization and sustainable advantages, this WPC PE production line is becoming the core competitiveness of the outdoor building materials market.
