PVC Board/Sheet Production Line

PVC Laminate Sheet Production Line

PVC Laminate Sheet Production Line

PVC laminating sheet advantages

  1. PVC Laminate saves the time of the contractors as the same sheet is used for packing the side. There is no need to use edge bands. PVC laminate can be folded upto 90 degrees which makes it stand out among other options.
  2. These laminates are safe for kitchen as they are corrosion resistant, termite resistant, borer resistant, stain resistant, water resistant, lead free, environment friendly, harmful emission free, easy to clean and toxin free.
  3. A PVC laminate can be easily cleaned without worrying about the finish as they are waterproof.
  4. This sheet comes in many colors and texture and also highly durable.
  5. The installation of PVC laminate is very easy and is done without any tension.
  6. One of the attractive features of PVC laminates is that they are economical. You get the look and feel of luxurious items at very reasonable rates.
  7. PVC laminates are pre finished, which means there is no need of giving finish before application.

PVC laminating sheet production:

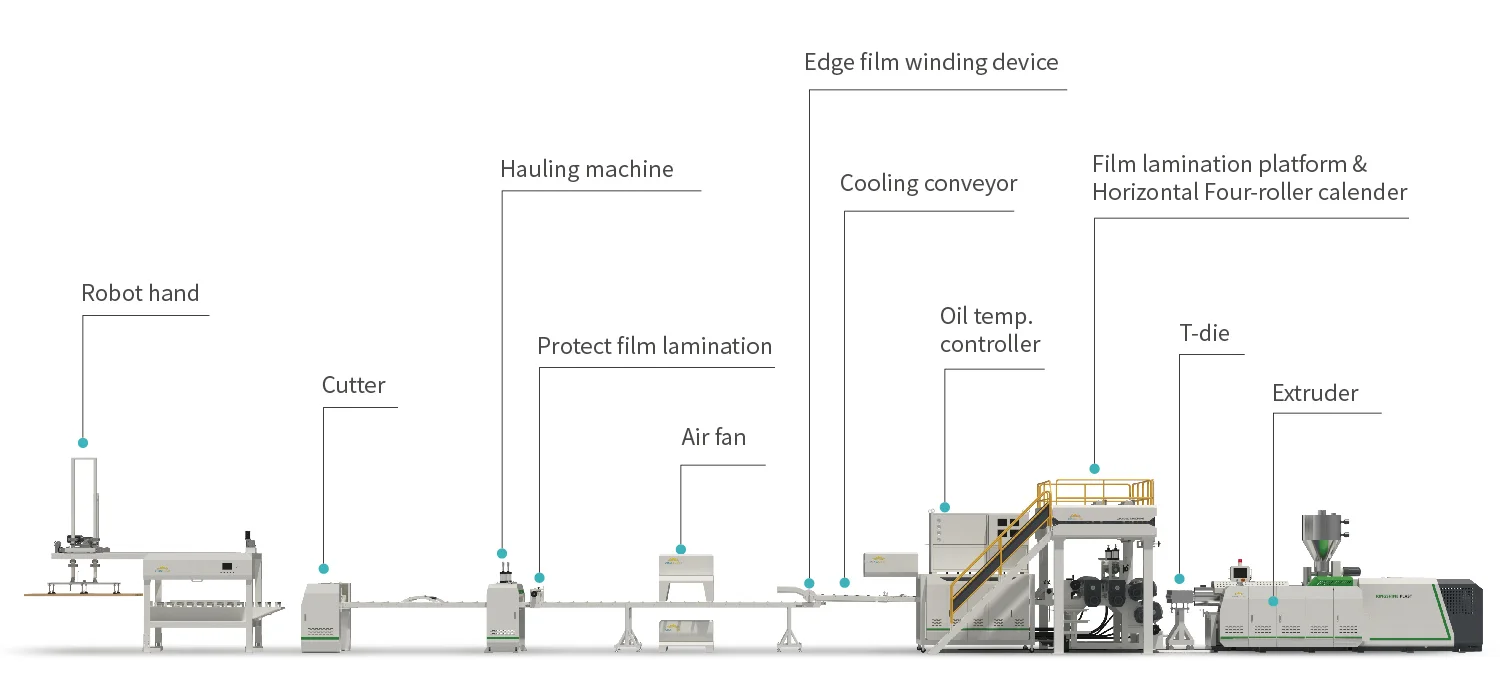

With PVC sheet production line, PVC sheet is extruded out and shaped by three-roll calender. And the sheet surface is treated with lamination directly in line, which makes the sheet in many colors and texture.

Parameters of PVC/WPC Door Board :

S.no Usage Door Panel
1 Width 800-900 mm
2 Thickness 35-45 mm
3 Wall Thickness 5-7.5mm
4 Foaming Ratio 0.9 t/m3
6 Weight 11.5-15 kg/m

Technical parameter:

Model 80/156 92/188
Thnckness(mm) 1-8 1-8
Width(mm) 1350 1350
Extruder Motor(kw) 75 110
Max capacity(kg/h) 450 750
