PVC Marble / UV Board Extrusion Production Line
PVC Marble / UV Board Extrusion Production Line Introduction:
The PVC marble UV board extrusion line is an advanced manufacturing system specially designed for producing high-quality PVC marble sheets / UV boards – a high-quality alternative to natural marble and traditional decorative boards. This extrusion production line ensures efficiency, durability, and stunning aesthetics, making it ideal for modern interior and exterior applications.

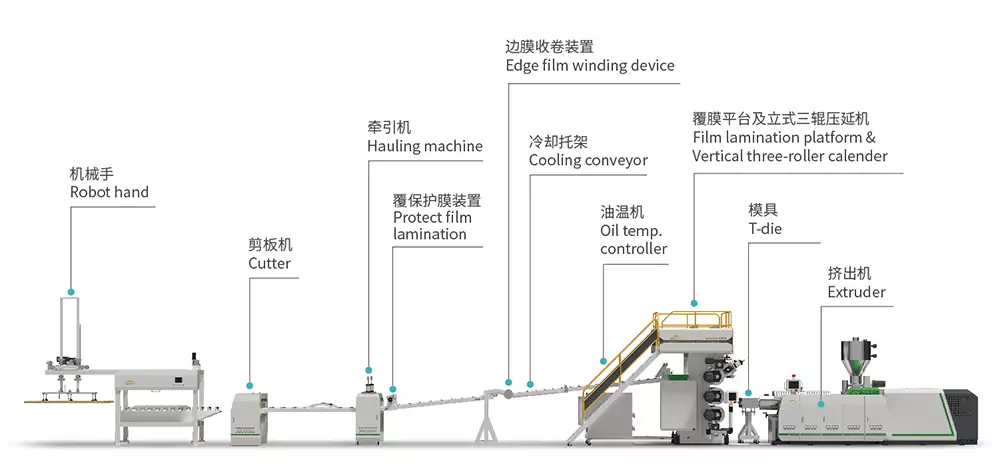

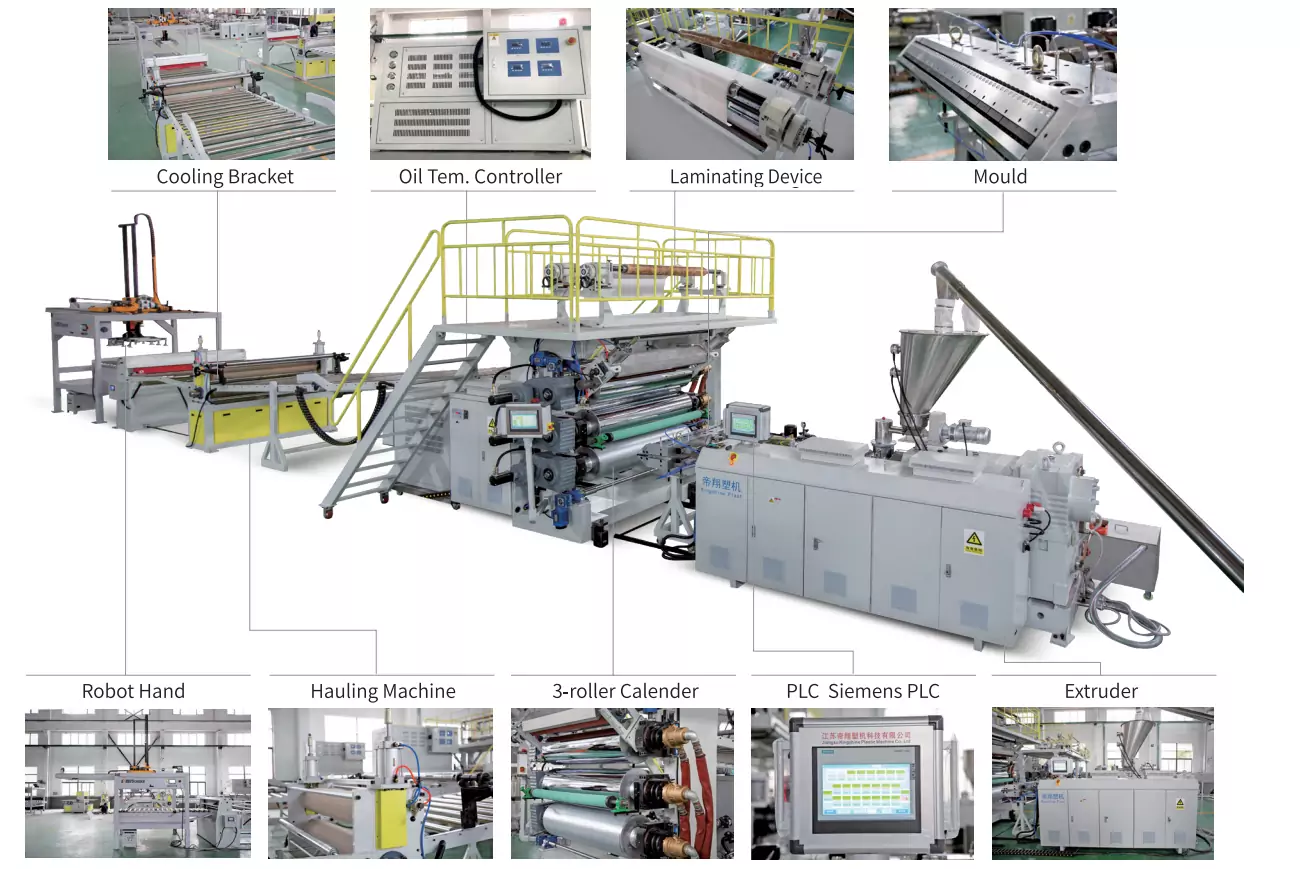

Composition of this PVC marble / UV board production line: Conical twin – screw extruder, T-die, vertical three – roller calender (including online laminating), cooling rollers, traction and edge – trimming device, shearing machine, sheet – lifting machine etc
Key Features of the PVC Marble / UV Board Production Line:
- High Efficiency & Automation – The production line integrates automated feeding, extrusion, calibration, and cutting, reducing labor costs while maximizing output.
- UV Coating Technology – The UV-treated surface enhances scratch resistance, color stability, and gloss retention, ensuring long-lasting beauty.
- Eco-Friendly Material – Made from PVC (polyvinyl chloride), these boards are recyclable, waterproof, and free from harmful chemicals.
- Marble-Like Aesthetics – Advanced printing and embossing techniques create realistic marble patterns, offering luxury at a fraction of the cost.
- Durability & Weather Resistance – Ideal for both indoor and outdoor use, resistant to moisture, mold, and UV rays.

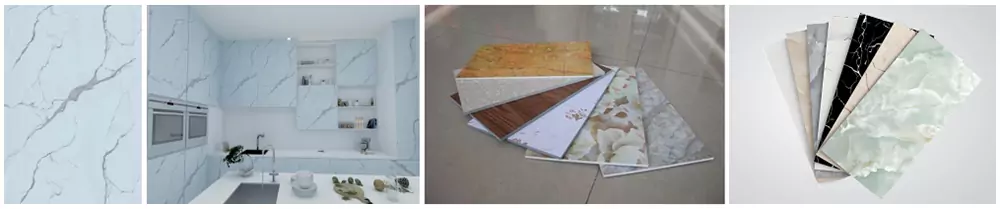

Final products of PVC Marble Sheet / UV Board Production Line:
Technical Parameters:
| Model | 80-156 | 92/188 |
|---|---|---|
| Thickness(mm) | 1-8 | 1-8 |
| Extruder motor (kw) | 75 | 110 |
| Width(mm) | 1350 | 1350 |
| Max Capacity(kg/h) | 450 | 750 |
PVC Marble / UV Board Extrusion Production Line Video:
Why Choose Our PVC Marble / UV Board Extrusion Machine Line?
- Customizable Output – Adjustable thickness, width, and patterns to meet market demands.
- Energy-Saving Design – Optimized for low power consumption without compromising quality.
- Reliable After-Sales Support – Technical assistance, maintenance, and spare parts availability.
