WPC PE/PVC Profile Extrusion Line

WPC PE Profile Production Line

WPC PE Profile Production Line

PE/PP WPC Outdoor Profile Product Application

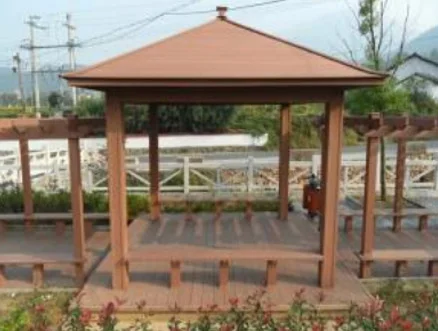

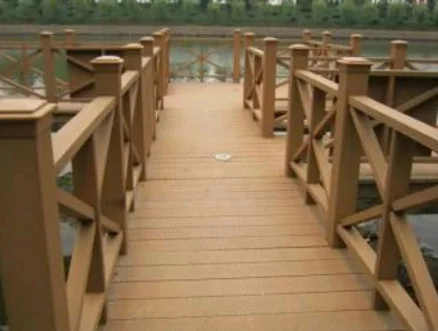

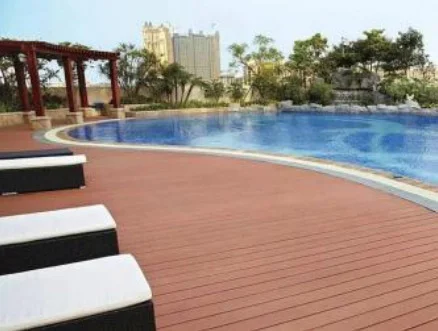

Outdoor landscape, fence, pergola, decking, gratings, sauna board, poles,etc.

PE/PP WPC Outdoor Profile Product Features

WPC PE/PP profile is an outdoor product that is environmentally friendly and non -polluting, which can be recycled for re-extrusion use, and which has the characteristics of water-proof, moisture -proof, flame -retardant, mould -proof, weather- resistance,non -fading, long life,etc. Also, it can be processed by drilling, sawing, nailing, plans and other processes like wood,which can be quickly installed and loved by customers.

Wood Plastic Products Advantages:

  1. Environmentalism.
  2. Waterproof, dampproof, rotproof, mildewproof, mothproof and ametabolic.
  3. Reasonable structure and high intensity.
  4. Splicing structure, timesaving and laborsaving.
  5. Finer heat preservation and sound insulation.
  6. Finer inflaming retarding feature.
  7. Remarkable cost performance advantage.

Product Description

Performance of PVC Wall Panel Production Line

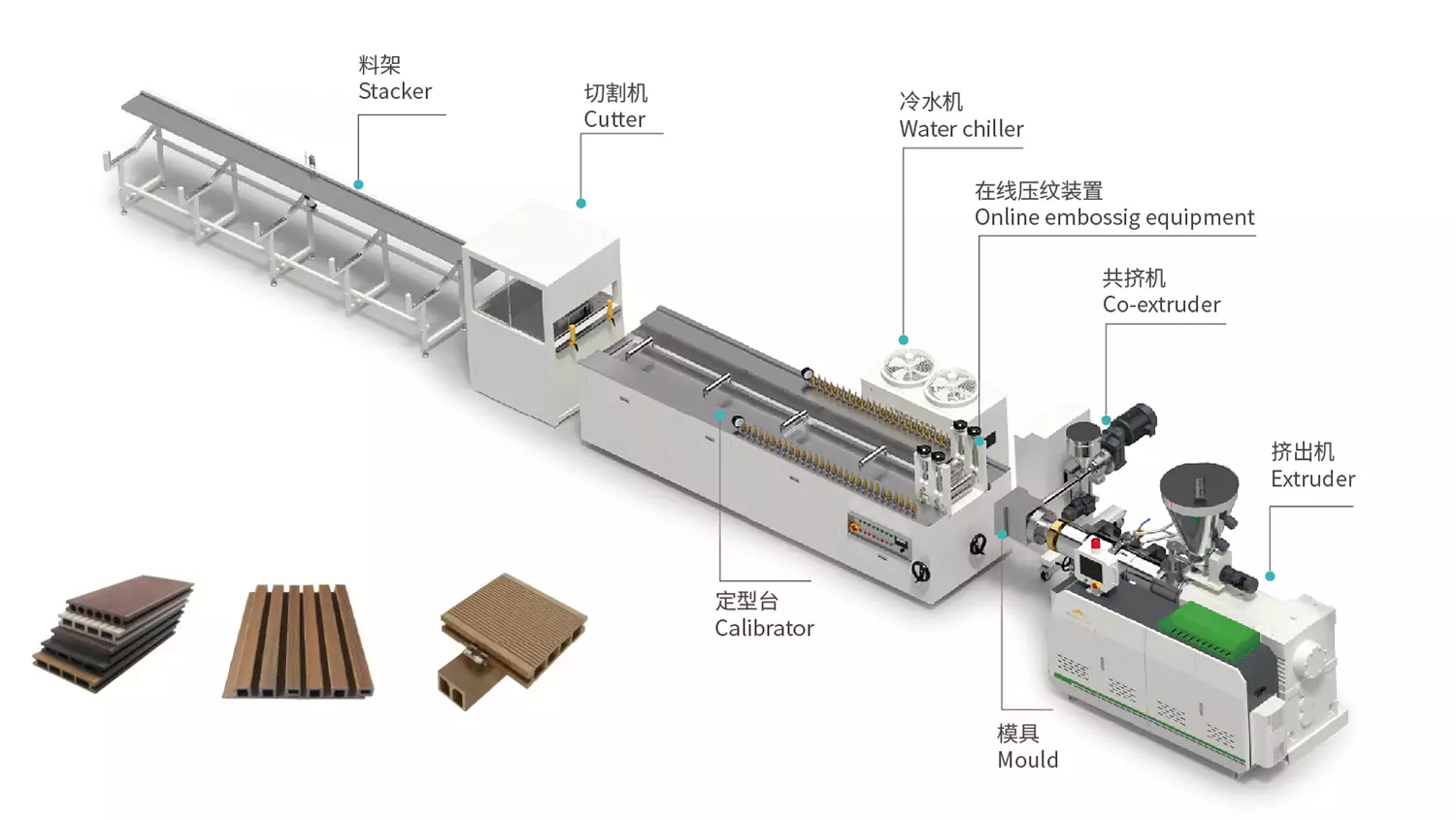

Details of WPC PE Profile Extrusion Machine:

Main Technical Specification:

Model 65/132 80/156
Max width(mm) 240 600
Extruder motor(kw) 37 55
Max capacity(kg/h) 150-250 250-350

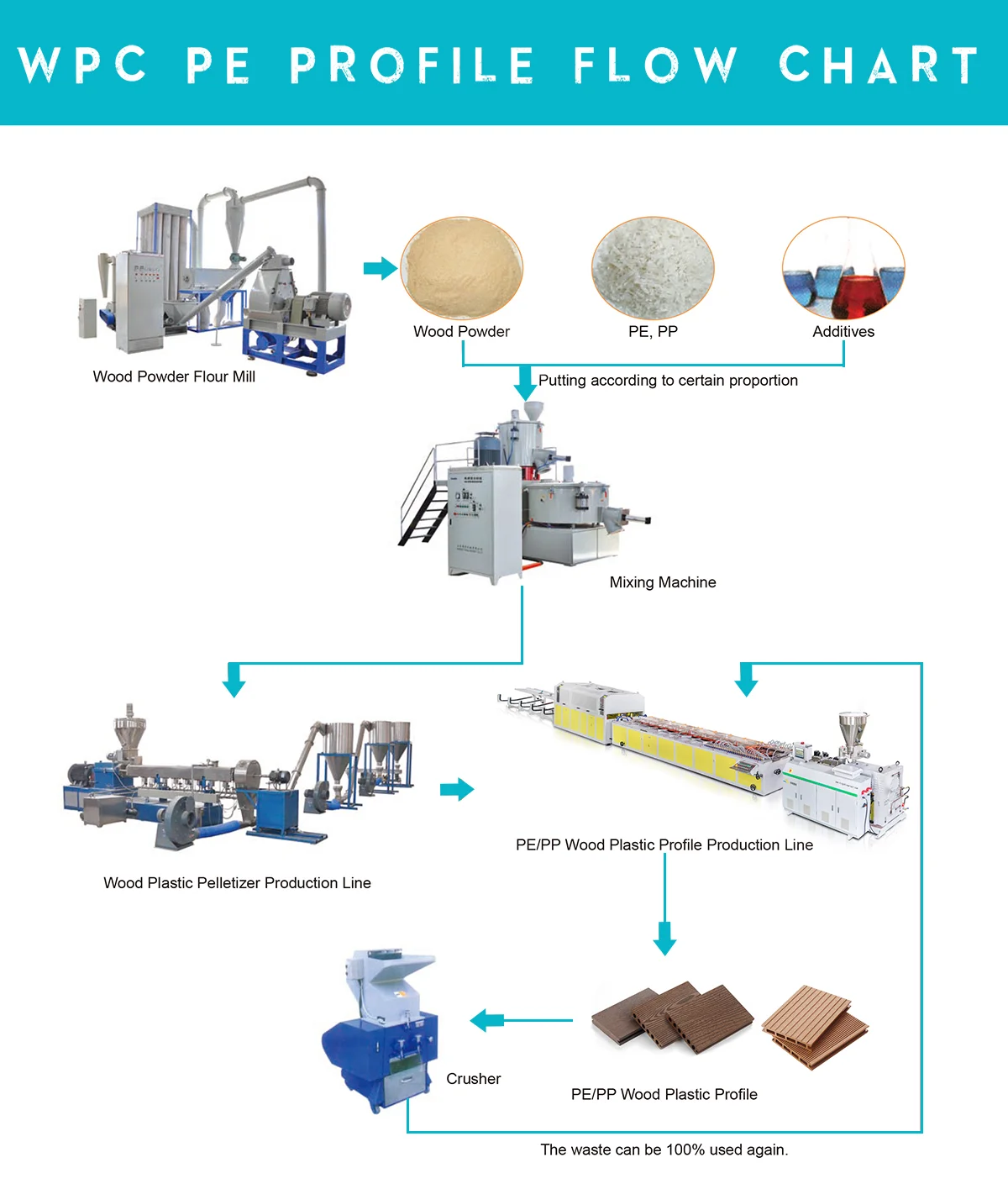

Flow Chart
