WPC Door Board and Frame Machine
PVC/WPC Door Frame Production Line
PVC/WPC Door Frame Production Line
WPC/PVC Door Frame Machine has the characters such as force extruding, high quality, wide application, long usage time, low cutting speed, not-easy decomposition of material, good plasticized performance, powder forming directly, etc. This extruder machine is equipped with self temperature controlling and vacuum exhausting devices. It suits for the production of pipes, plates, special shaped materials, etc.
Applications of PVC/WPC Door Frame

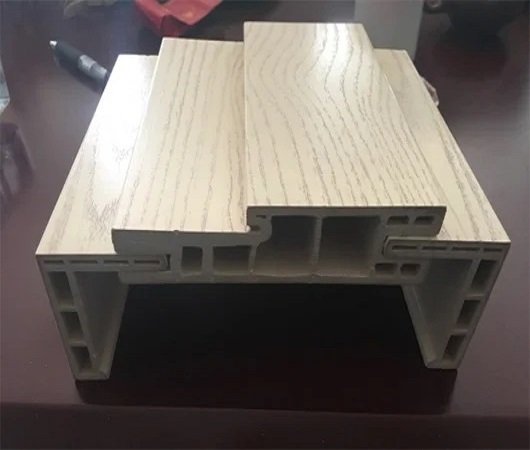

PVC/WPC Door Frame is mainly used for door and window profile, indoor home decoration, indoor and outdoor guardrail and other decorative material. PVC/WPC door frame production line–PVC/WPC door frame is an ideal choice for decoration of villa, home, hotel, shopping mall and office.

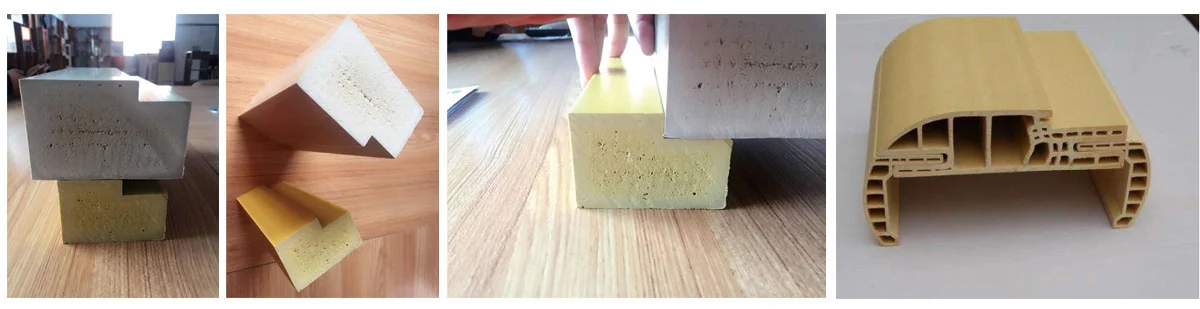

Advantages of PVC/WPC Door Frame
- Waterproof: moth-proof, anti-corrosion, bacteriostasis, suitable for using in any indoor area.
- Environment-friendly: no toxic substances, dangerous chemical components or preservatives, no formaldehyde, benzene or other harmful substances released, will not cause air pollution and environmental pollution, 100% recycling, but also biodegradable.
- Fireproof: fireproof grade is B1, second only to stone, suitable for high fire protection requirements occasions.
- High strength and wear resistance: longer lifetime.
- Cost effective: lower production but higher quality.
- Various surface treatment: the surface of profile can laminate different designs of films to make different patterns.
- Performance is more stable: no shape exchange.
WPC/PVC Door Frame Machine has the characters such as force extruding, high quality, wide application, long usage time, low cutting speed, not-easy decomposition of material, good plasticized performance, powder forming directly, etc. This extruder machine is equipped with self temperature controlling and vacuum exhausting devices. It suits for the production of pipes, plates, special shaped materials, etc.
Technical parameter:
| Model | 55/110 | 65/132 |
|---|---|---|
| Width(mm) | 300 | 300 |
| Power(kw) | 22 | 37 |
| Max capacity(kg/h) | 80-120 | 150-250 |
Production Process
Product Description
Performance of PVC/WPC Door Frame Production Line
SJSZ series PVC/WPC door frame production line is mainly used for the production of PVC/WPC door and window profile. The production line consists of conical twin screw extruder, mold, vacuum sizing table, tractor, cutting machine and so on. SJSZ series PVC door frame extrusion production line has wide adjustment range, high temperature control precision and convenient and reliable operation.

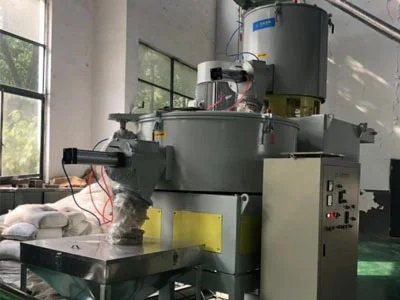

Mixer

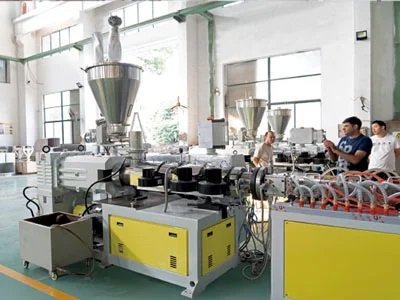

Extruder

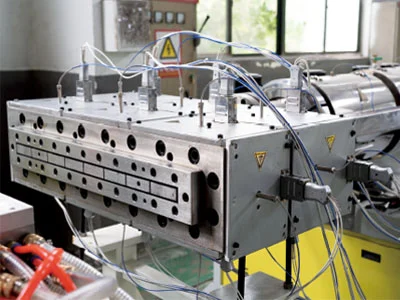

Mold

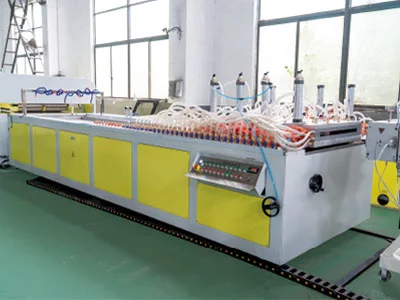

Calibration table

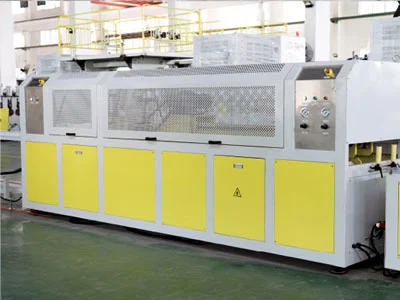

Haul-off

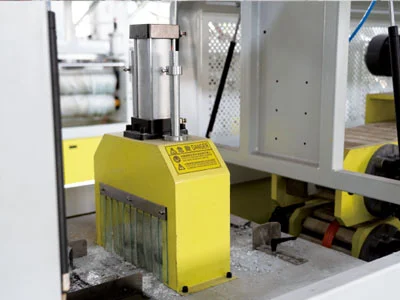

Cutter

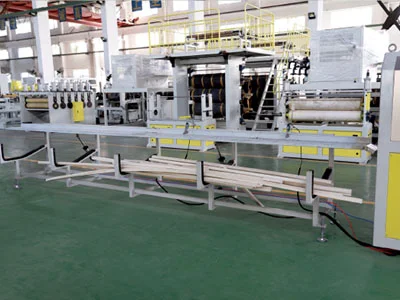

Stacker
Features of PVC/WPC Door Frame Production Line
- PVC/WPC door frame production line adopts exclusively designed SJSZ55/110 or SJSZ65/132 conical twin screw extruder, with vacuum degassing system, can get rid of the waste gas from the raw material which can ensure good quality of final granules.
- Gearbox: from Jiangyin Deling gearbox company, very famous brand in China, with nice outline, stable running, low noise and long service time.
- Driving system: adopting Siemens motor, which provide stable torque output and various speed.
- ABB frequency converter and Schneider electric control system which have wide adjustment range, high precision temperature control, simple operation and good reliability.
- The production line is equipped with large forcing cooling device to ensure good effects of the door frame forming.
- Caterpillar-type haul-off unit utilizes branded reducing speed motor and ABB frequency inverter, and is featured in reasonable structure design, large and stable hauling power.
- The cutting machine is equipped with dust collector device, has advantages of reliable and accurate work, high precise cutting performance.
