WPC Door Board and Frame Machine
PVC/WPC Door Board Production Line
PVC/WPC Door Board Production Line
Advantages of PVC/WPC Door Frame
- Waterproof: moth-proof, anti-corrosion, bacteriostasis, suitable for using in any indoor area.
- Environment-friendly: no toxic substances, dangerous chemical components or preservatives, no formaldehyde, benzene or other harmful substances released, will not cause air pollution and environmental pollution, 100% recycling, but also biodegradable.
- Fireproof: fireproof grade is B1, second only to stone, suitable for high fire protection requirements occasions.
- High strength and wear resistance: longer lifetime.
- Cost effective: lower production but higher quality.
- Various surface treatment: the surface of profile can laminate different designs of films to make different patterns.
- Performance is more stable: no shape exchange.

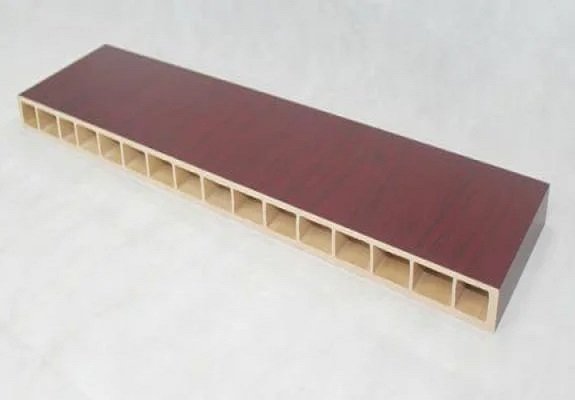

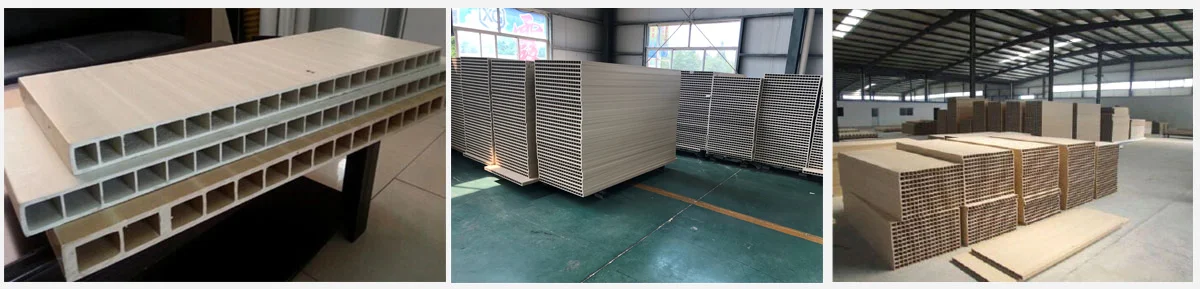

Parameters of PVC/WPC Door Board :
| S.no | Usage | Door Panel |
|---|---|---|
| 1 | Width | 800-900 mm |
| 2 | Thickness | 35-45 mm |
| 3 | Wall Thickness | 5-7.5mm |
| 4 | Foaming Ratio | 0.9 t/m3 |
| 6 | Weight | 11.5-15 kg/m |
Production Process
Technical parameter:
| Model | 80/156 | 92/188 |
|---|---|---|
| Thnckness(mm) | 25-35 | 25-35 |
| Width(mm) | 800-1000 | 800-1000 |
| Power(kw) | 75 | 110 |
| Max capacity(kg/h) | 300-400 | 400-600 |
Product Description
Performance of PVC/WPC Door Board Production Line
SJSZ series PVC/WPC door board production line is mainly used for the production of PVC/WPC door board. The production line consists of conical twin screw extruder, mold, vacuum sizing table, tractor, cutting machine and so on. SJSZ series PVC door panel extrusion production line has wide adjustment range, high temperature control precision and convenient and reliable operation.

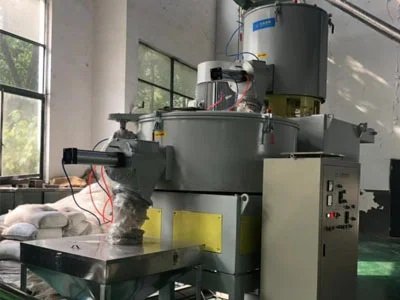

Mixer

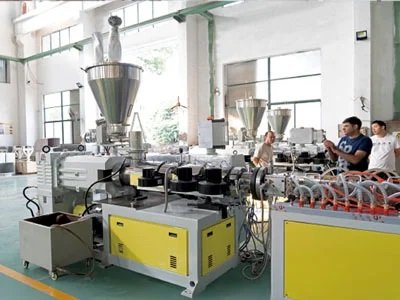

Extruder

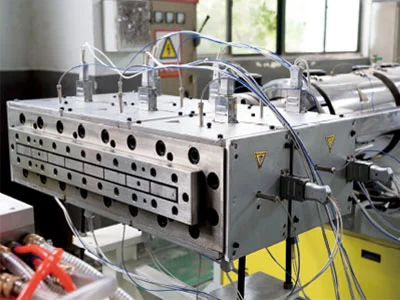

Mold

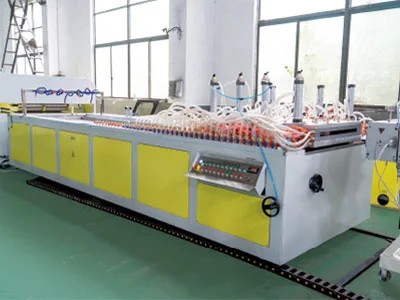

Calibration table

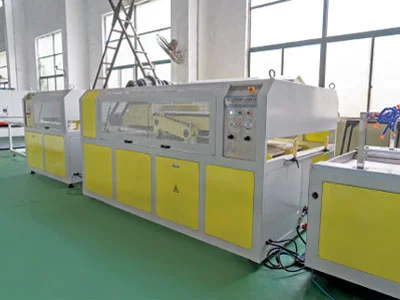

Traction

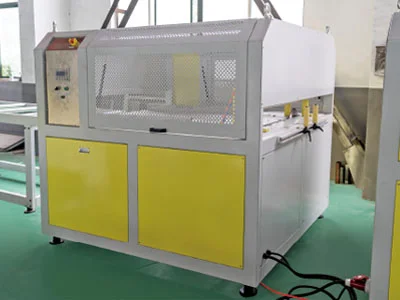

Cutter

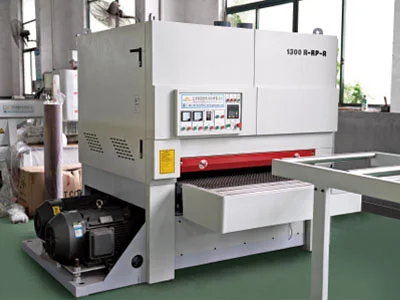

Sanding machine

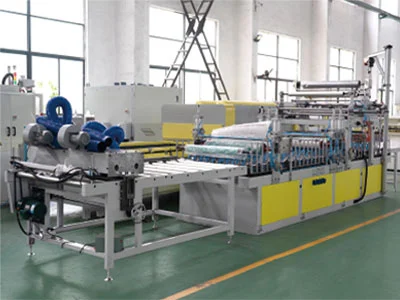

Laminating machine
Features of PVC/WPC Door Board Production Line
- PVC/WPC door board production line adopts exclusively designed SJSZ80/156 or SJSZ92/188 conical twin screw extruder, with vacuum degassing system, can get rid of the waste gas from the raw material which can ensure good quality of final granules.
- Gearbox: from Jiangyin Deling gearbox company, very famous brand in China, with nice outline, stable running, low noise and long service time.
- Driving system: adopting Siemens motor, which provide stable torque output and various speed.
- ABB frequency converter and Schneider electric control system which have wide adjustment range, high precision temperature control, simple operation and good reliability.
- The production line is equipped with large forcing cooling device to ensure good effects of the door board forming.
- Caterpillar-type haul-off unit utilizes branded reducing speed motor and ABB frequency inverter, and is featured in reasonable structure design, large and stable hauling power.
- The cutting machine is equipped with dust collector device, has advantages of reliable and accurate work, high precise cutting performance.
